Ebb36 Wiring. BTT EBB36 Can Toolhead Board You'll need this for your sensor setup: # sensor_type:MAX31865 # sensor_pin: EBBCan: PA4 # spi_bus: spi1 # rtd_nominal_r: 100 # rtd_reference_r: 430 # rtd_num_of_wires: 2 On the EBB36, these pins can be accessed either via the Molex connector or the two DuPont pins below it
EBB 36 CAN BIGTREETECH documentation from bigtreetech.github.io
It shows the wiring in the manual - not the pinout diagram but two center pins for two-wire is correct I'm using an EBB36 V1.2 canbus board with the OptoTap V2, and I'm hoping you guys can help me with the TAP sensor wiring
EBB 36 CAN BIGTREETECH documentation
It shows the wiring in the manual - not the pinout diagram but two center pins for two-wire is correct The CAN-L and CAN-H pins should be wired directly to the CANH & CANL pins on the CAN tranciever You'll need this for your sensor setup: # sensor_type:MAX31865 # sensor_pin: EBBCan: PA4 # spi_bus: spi1 # rtd_nominal_r: 100 # rtd_reference_r: 430 # rtd_num_of_wires: 2

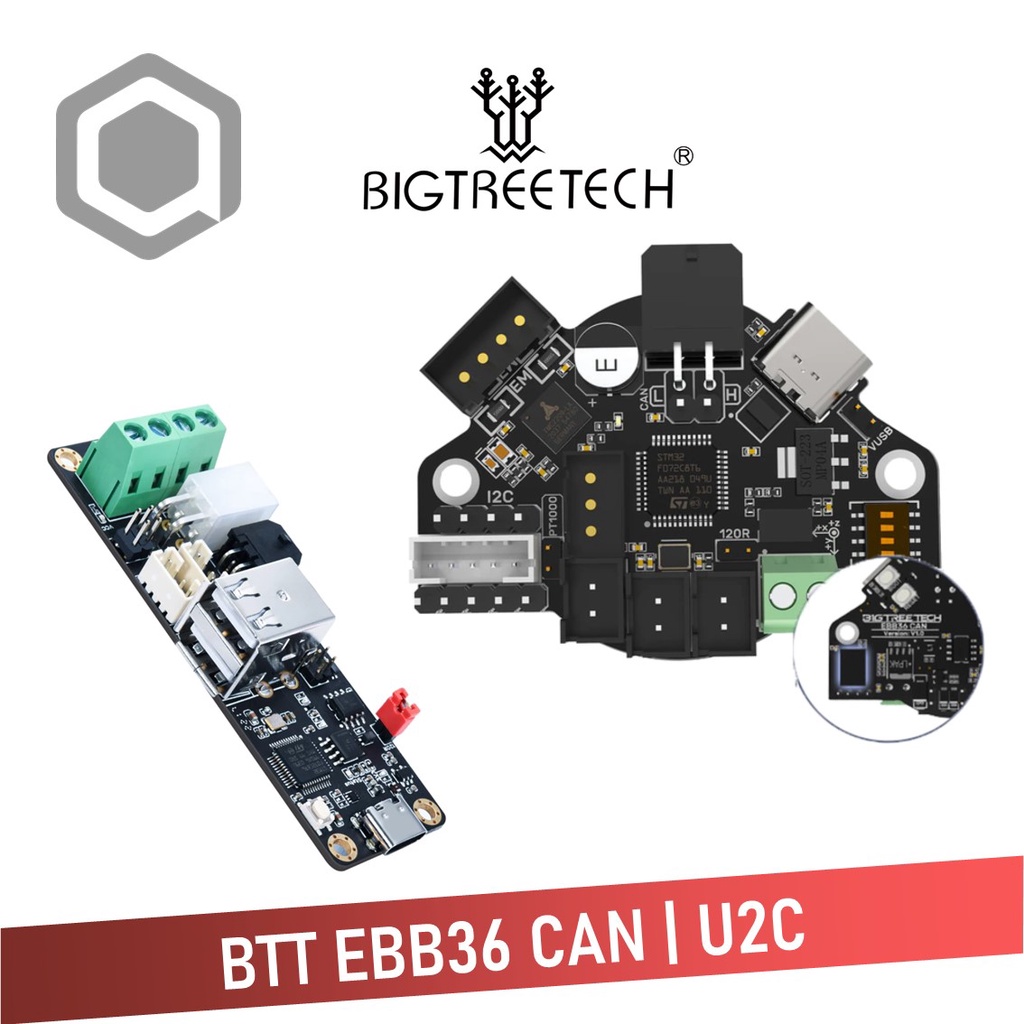

BTT EBB36 Can Toolhead Board. The header for the 120R termination resistor is circled in purple I'm using an skr3 ez with btt pi connected via usb cable and the skr3 then goes to the canbus tool head (also an ebb36) via the onboard CAN pins through 4 wires as opposed to originally 19

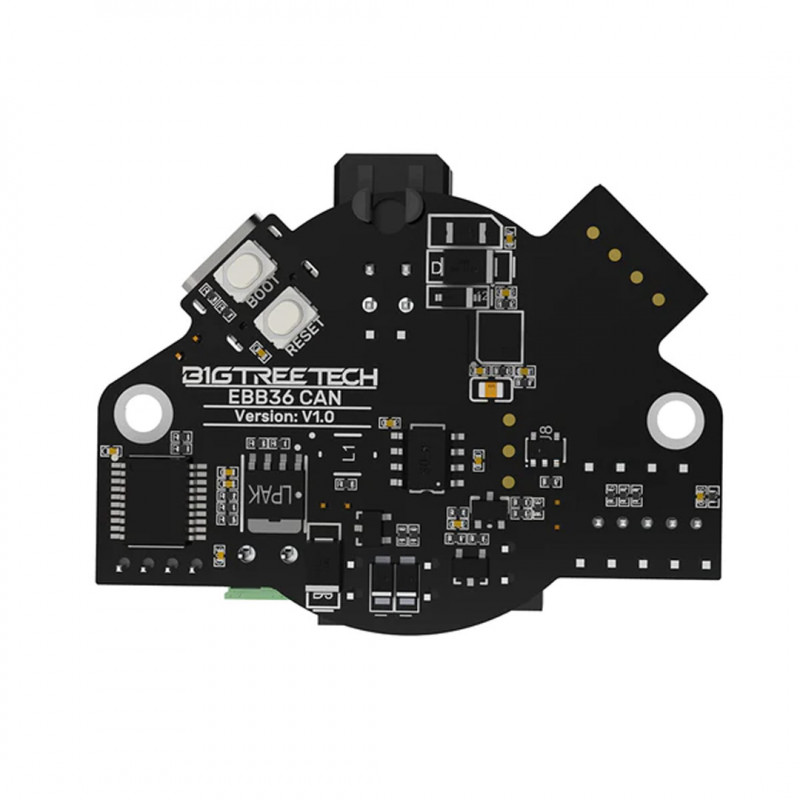

Installing Canbus with the EBB36 r/BIGTREETECH. The CAN-L and CAN-H pins should be wired directly to the CANH & CANL pins on the CAN tranciever BIGTREETECH EBB36 CAN V1.0/V1.1 is a nozzle adapter board specially designed for the 36 extruder stepper motor, which is launched by the 3D printing team Shenzhen BIQU Innovation Technology Co., Ltd.
